1、點火2~4分鐘發生蒸汽

PROMPT STEAMING AFTER 2~4 MINUTES OF LIGHTING

點火2~4分鐘即可獲得足壓蒸汽。

WITH SUFFICIENT STEAM OBTAINED AFTER 2~4 MINUTES OF LIGHTING，IMMEDIATE WORK IS AVAILABLE.



2、安全裝置及控制

SAFETY EQUIPMENT＆CONTROLLING

燃燒、蒸汽壓力及水位均全自動控制，因此運轉既安全又經濟。

FULL AUTO-CONTROLLED COMBUSTIONSTEAM  PRESSURE AND WATER LEVEL PROVIDE SAFETY＆ECONOMIC OPERATION.



3、傳熱性佳

GOOD HEAT TRANSFER

燃燒氣體高速流動水管群間。熱對流佳熱吸引快，傳熱效果佳。

COMBUSTION GAS FLOW THROUGH THE FIN OF THE TUBE.THE HEAT TRANSMIT IS QUICK AND RESULT IS WELL.



4、運轉安靜

送風機及燃燒聲音皆比舊式同型產品低5~6db，即使在鍋爐旁邊作業變不受影響。

THE SOUND5~6DBOF EXHAUST FAN AND COMBUSTION IS LOWER THAN THE OLD TYPE SILENT SOUND OF OPERATION OFFERING COMFORTABLESURROUNDINGS SURROUNDINGS



5、效率92%~96%

EFFICIENCY 92%~96%

爐體構造吸熱效果佳，燃燒熱效率高達92%~96%

BOILER STRUCTURE OF EXCELLENT HEAT-ABSORPTION EFFECT PROVIDES SATISFIED COMBUSTION EFFICIENCY 88%~96%



6、高技術、高品質

HIGH TECHNOLOGYHIGH QUALITY

全自動CO2焊接，一貫化的生產，部件規格統一，品質有保障。

THE FULL-AUTOMATIC CO2 WELDS.THE PRODUCTION OF THE CONSISTENCY AND PARTS SPECIFICATION UNIFYRESULTING IN HIGH QUALITY PRODUCTS



7、整機調試出廠、現場免安裝

THE OVERALL DEBUGGING FACTORY

鍋爐整體調試出廠、現場免安裝，設備到達使用現場通電后即可使用。

BOILER OVERALL COMMISSIONING OF THE FACTORYTHE SITE IS NOT INSTALLEDTHE DEVICE CAN BE USED TO REACH THE SCENE AFTER THE USE OF POWER.

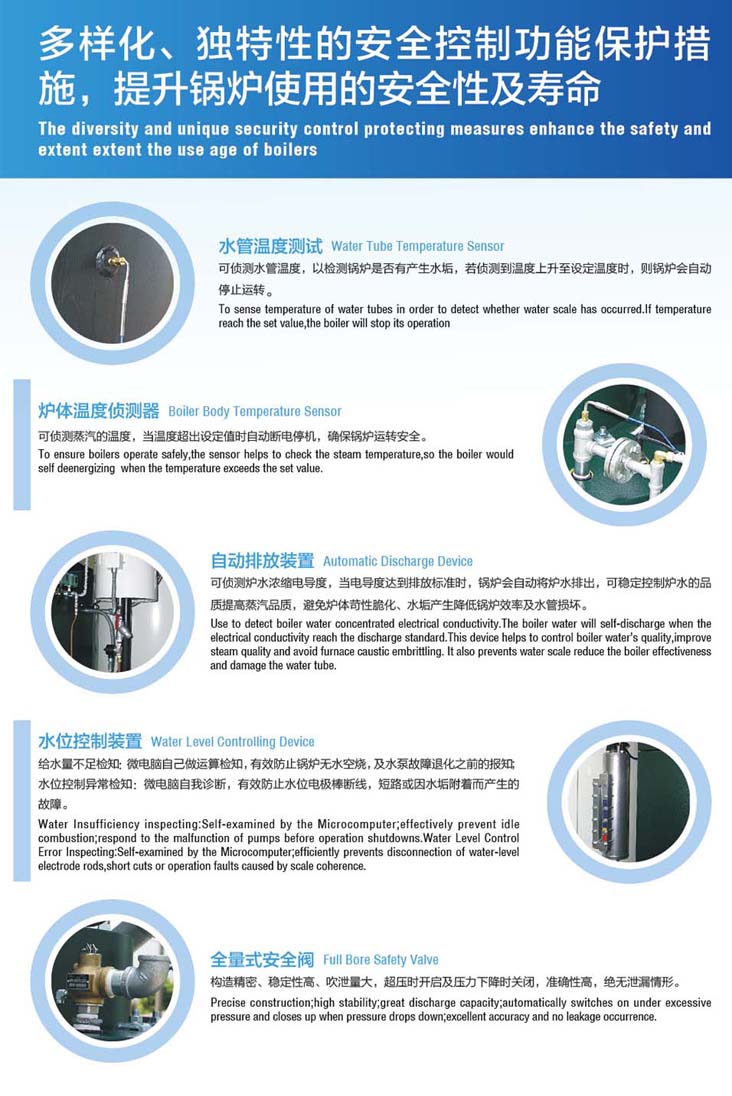

8、水管溫度測試

Water Tube Temperature Sensor

可偵測水管溫度，以檢測鍋爐是否有產生水垢，若偵測到溫度上升至設定溫度時，則鍋爐會自動停止運轉。

TO SENSE TEMPERATURE OF WATER TUBES IN ORDER TO DETECT WHETHER WATER SCALE HAS OCCURRED. OF TEMPERATURE REACH THE SET VALUETHE BOILER WILL STOP ITS OPERATION



9、爐體溫度偵測器

Boiler Body Temperature Sensor

可偵測蒸汽的溫度，當溫度超出設定值時自動斷電停機，確保鍋爐運轉安全。

TO ENSURE BOILERS OPERATE SAFELYTHE SENSOR HELPS TO CHECK THE STEAM TEMPERATURE

SO THE BOILER WOULD SELF DEENERGIZING WHEN THE TEMPERATURE EXCEEDS THE SET VALUE



10、自動排放裝置

Automatic Discharge Device

可偵測爐水濃縮電導度，當電導度達到排放標準時，鍋爐會自動將爐水排出，可穩定控制爐水的品質提高蒸汽品質，避免爐體苛性脆化、水垢產生降低鍋爐效率及水管損壞。

USE TO DETECT BOILER WATER CONCENTRATED ELECTRICAL CONDUCTIVITY.THE BOILER WATER WILL SELF-DISCHARGE WHEN THE ELECTRICAL CONDUCTIVITY REACH THE DISCHARGE STANDARD THIS DEVICE HELPS TO CONTROL BOILER WATER’S QUALITYIMPROVE STEAM QUALITY AND AVOID FURNACE CAUSTIC EMBRITTLING. IT ALSO PREVENTS WATER SCALE REDUCE THE BOILER EFFECIVENESS AND DAMAGE THE WATER TUBE.
